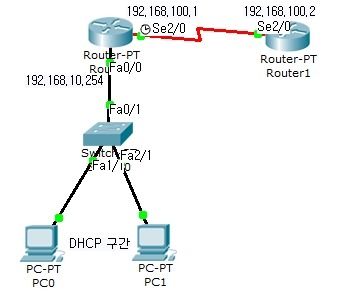

[Cisco Packet Tracer] DHCP + NAT

nat.pkt

R1족보
en
conf t
int se2/0
ip addr 192.168.100.1 255.255.255.0
clock rate 56000
no sh
exit
int fa0/0
ip addr 192.168.10.254 255.255.255.0
no sh
exit

ip dhcp pool ccna
network 192.168.10.0 255.255.255.0
default-router 192.168.10.254
exit
ip dhcp excluded-address 192.168.10.254

router rip
network 192.168.100.0
network 192.168.10.0
exit

ip route 0.0.0.0 0.0.0.0 se2/0

access-list 10 permit 192.168.10.0 0.0.0.255
ip nat pool ccie 192.100.100.1 192.100.100.254 netmask 255.255.255.0
ip nat inside source list 10 pool ccie
int fa0/0
ip nat inside
exit
int se2/0
ip nat outside
end





R2족보
en
conf t
int se2/0
ip addr 192.168.100.2 255.255.255.0
no sh
exit
router rip
network 192.168.100.0
exit

ip route 0.0.0.0 0.0.0.0 se2/0
